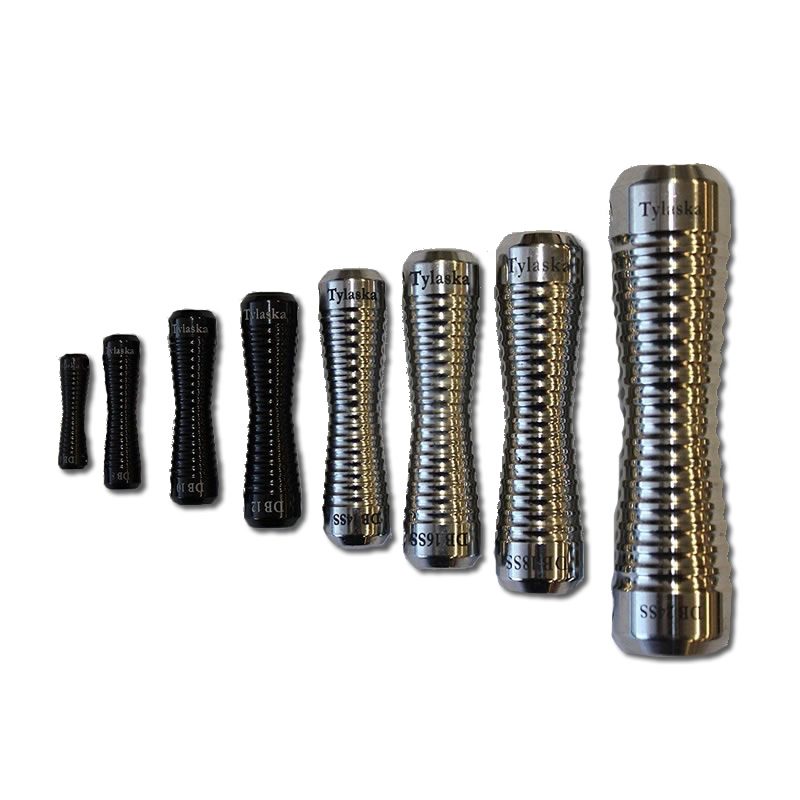

Product No. Description A (in. [mm]) B (in. [mm]) C (in. [mm]) Line Size (Recommended) Working Load Limit kg Breaking Strength kg Weight oz [g]
TY2506-SS DB6 Dogbone (Stainless Steel) .94 [23.9] .23 [5.8] .18 [4.6] 650 1,300 .1 (3)
TY2508-SS DB8 Dogbone (Stainless Steel) 1.26 [32.0] .31 [7.9] .23 [5.8] 1,150 2,300 .3 (9)
TY2510-SS DB10 Dogbone (Stainless Steel) 1.57 [39.9] .39 [9.9] .28 [7.1] 2,050 4,100 .6 (17)
TY2512-SS DB12 Dogbone (Stainless Steel) 1.89 [48.0] .47 [11.9] .34 [8.6] 2,950 5,900 1.0 (28)
TY2514-SS DB14 Dogbone (Stainless Steel) 2.20 [55.9] .55 [14.0] .42 [10.7] 4,100 8,200 1.6 (45)
TY2516-SS DB16 Dogbone (Stainless Steel) 2.52 [64.0] .62 [15.7] .47 [11.9] 5,200 10,400 2.4 (68)
TY2518-SS DB18 Dogbone (Stainless Steel) 2.83 [71.9] .70 [17.8] .50 [12.7] 6,800 13,600 3.4 (96)
