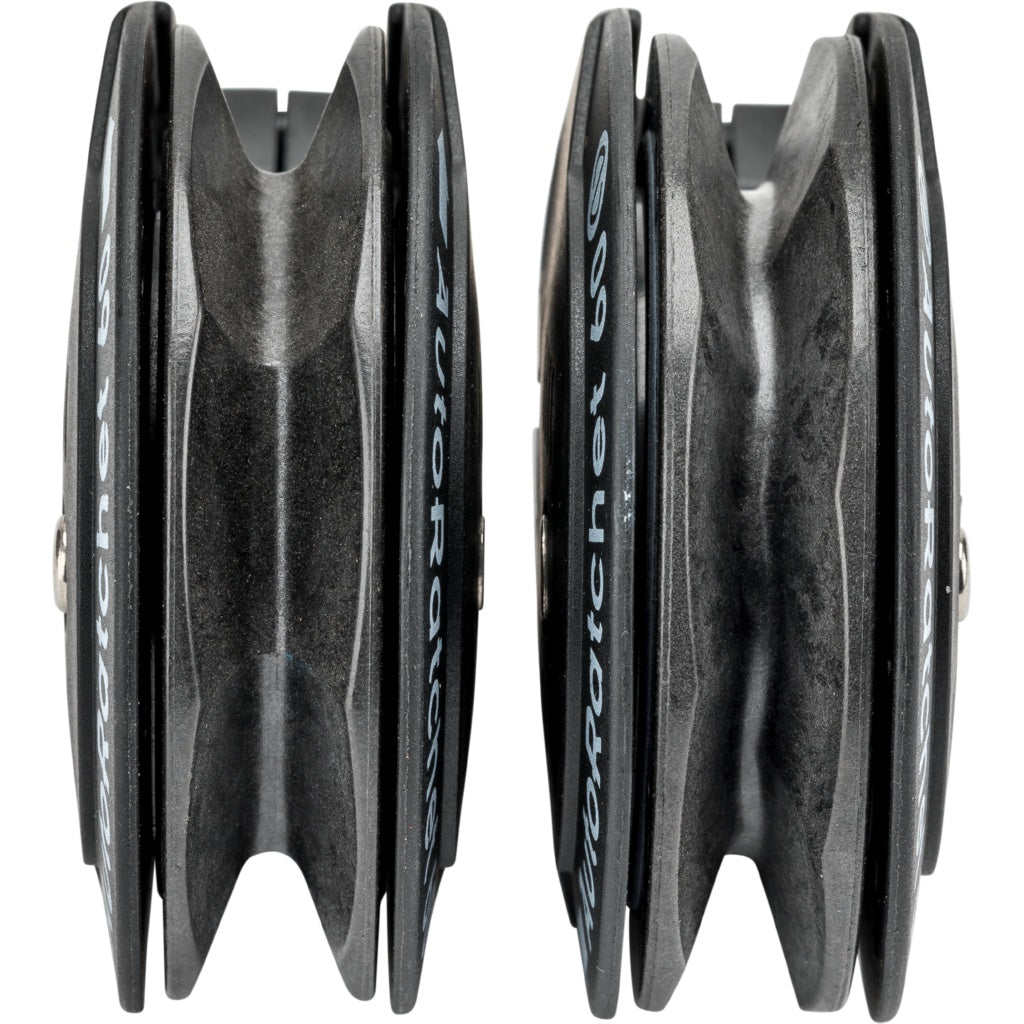

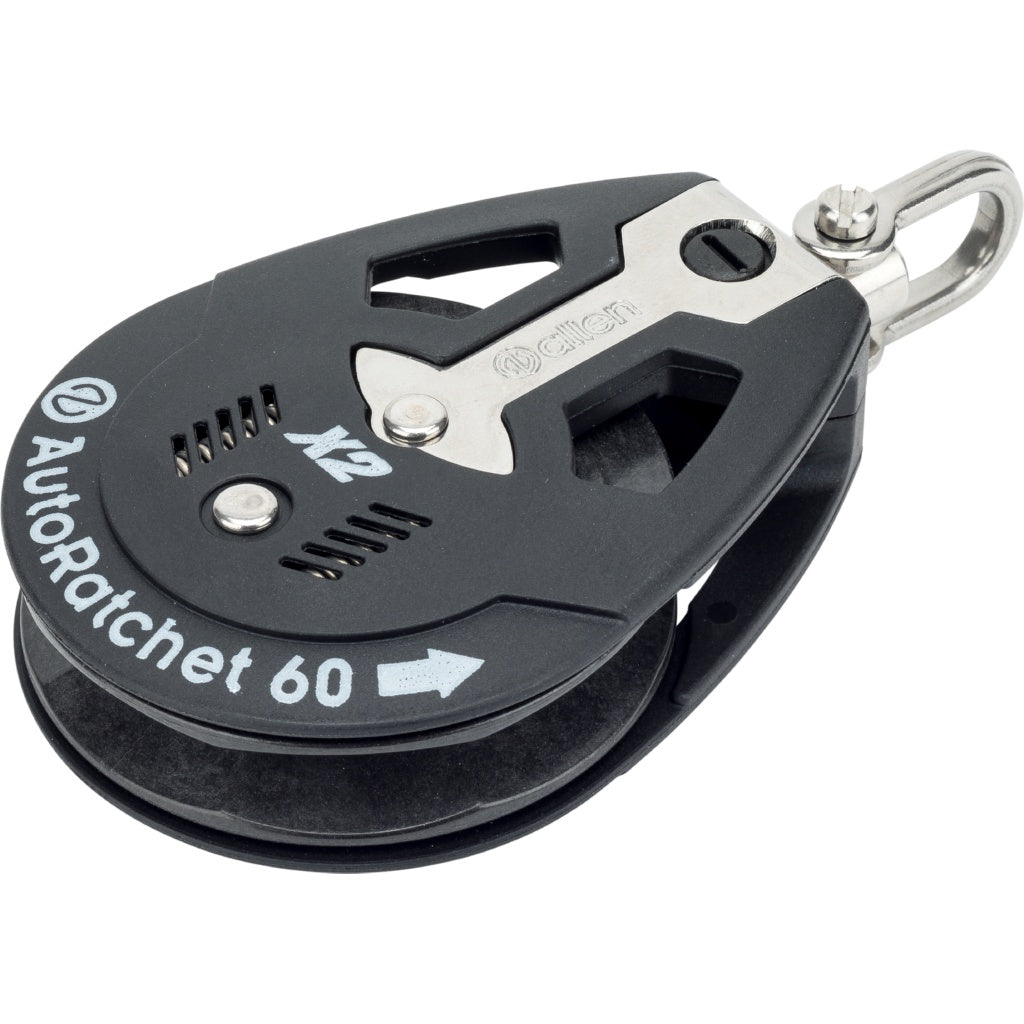

60mm X2 auto-ratchet block with Wave sheave

by Allen
Original price £79.95 - Original price £79.95
Original price £79.95
£81.84
£81.84 - £81.84
Current price £81.84

The “X2” pawl system incorporates two pawls into the mechanism for the ratchet block allows the load to be evenly shared between both pawls, this allows the block to withstand higher working loads while also increasing both the reliability and longevity of the block when compared to the older AutoRatchet designs.

Specifications

  • Sheave size: 60 mm (2 23/64")
  • Max. line size: 12 mm (15/32")
  • Overall height: 110 mm (4 21/64")
  • Breaking load: 1000 kg
  • Max. working load: 275 kg
