Tylaska

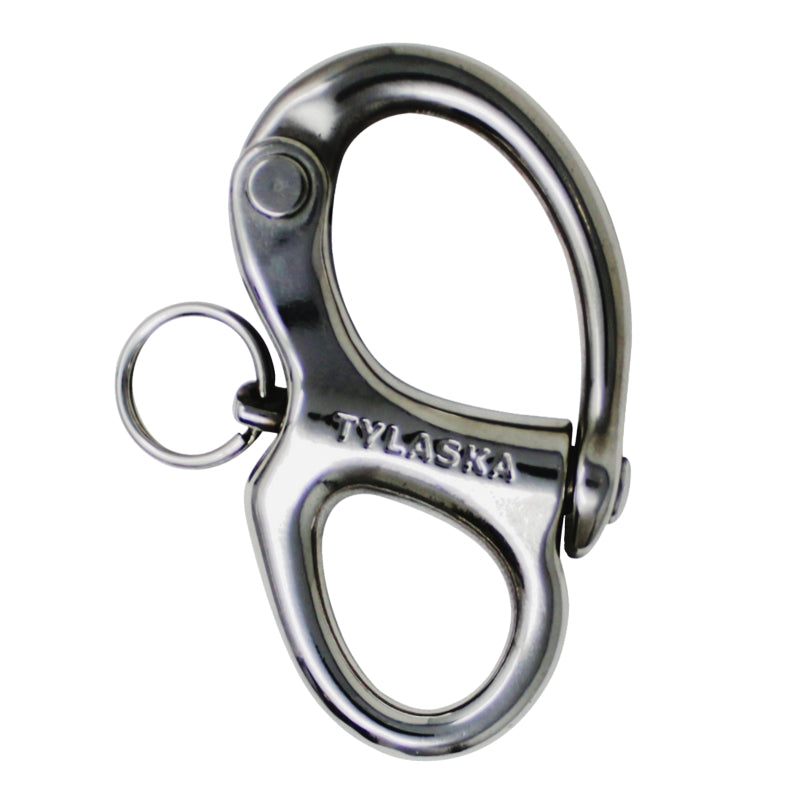

CR snap shackle
CR snap shackle
Regular price
£50.00
Regular price
Sale price
£50.00
Unit price
/
per
Tax included.
Couldn't load pickup availability
The CR snap shackle incorporates the extreme strength, outstanding corrosion resistance, and aerospace quality of Tylaska’s high performance racing hardware at a price that the cruiser or casual racer will find appealing. Unlike many plunger-pin snap shackles that are prone to catching on stays, the sleek geometry of the CR shackle has been optimised to reduce the risk of snagging and fouling. The locking hole feature allows the plunger pin to be locked in place using a small line or zip tie. Useful in extreme conditions where snap shackles have been known to release due to severe flogging.
Specifications
Part number | Model | A | B | C | D | E | F | Weight (g) | Max. working load (kg) | Brk. load (kg) |
TY1102 | CR2 | 9.7mm | 6.6mm | 35.1mm | 20.3mm | 2.8mm | 6.6mm | 12 | 455 | 910 |
TY1108-FB | CR8 | 24.4mm | 18.7mm | 80.5mm | 44.2mm | 6.1mm | 13.7mm | 99 | 1815 | 3630 |

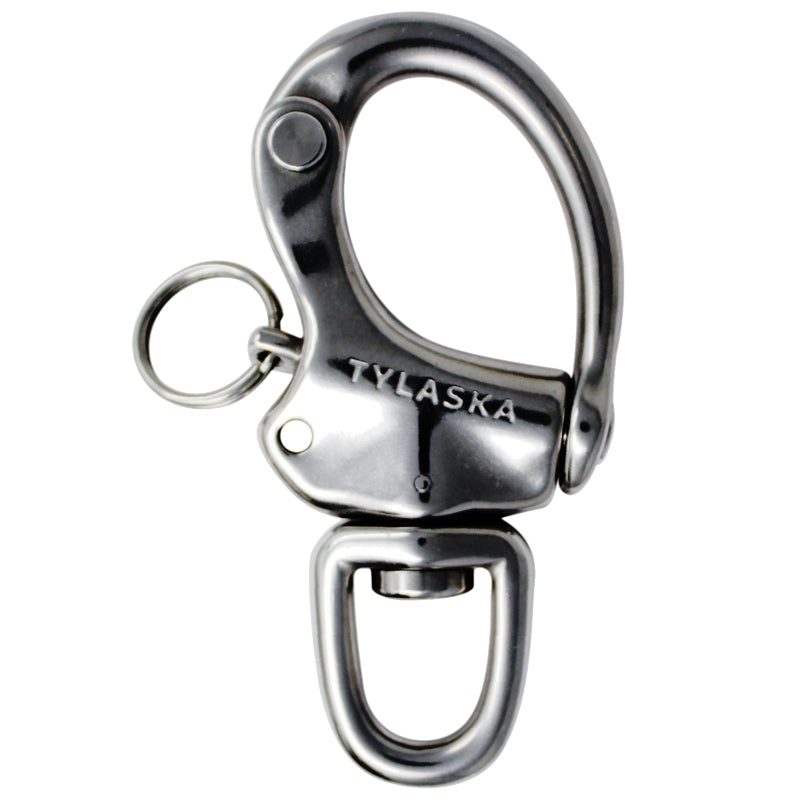

TY1108-S | CR8 swivel | 24.4mm | 13.7mm | 92.7mm | 44.2mm | 6.4mm | 13.7mm | 128 | 1815 | 3630 |
