KOHLHOFF LOOP® Thimbles
KOHLHOFF LOOP® Thimbles are simple thimbles which can be spliced into control lines. They are used to deflect sheets and control lines, or for lashings. KOHLHOFF LOOP® Thimbles are available in 6 different sizes. They are made of high strength aluminium.
|20A||20 mm||12 mm||7 mm||150 kg|
|24A||24 mm||11 mm||14 mm||1150 kg|
|30A||30 mm||12 mm||15 mm||1750 kg|
|40A||40 mm||20 mm||16 mm||2500 kg|
|50A||50 mm||25 mm||22 mm||4000 kg|
|60A||60 mm||30 mm||26 mm||5000 kg|

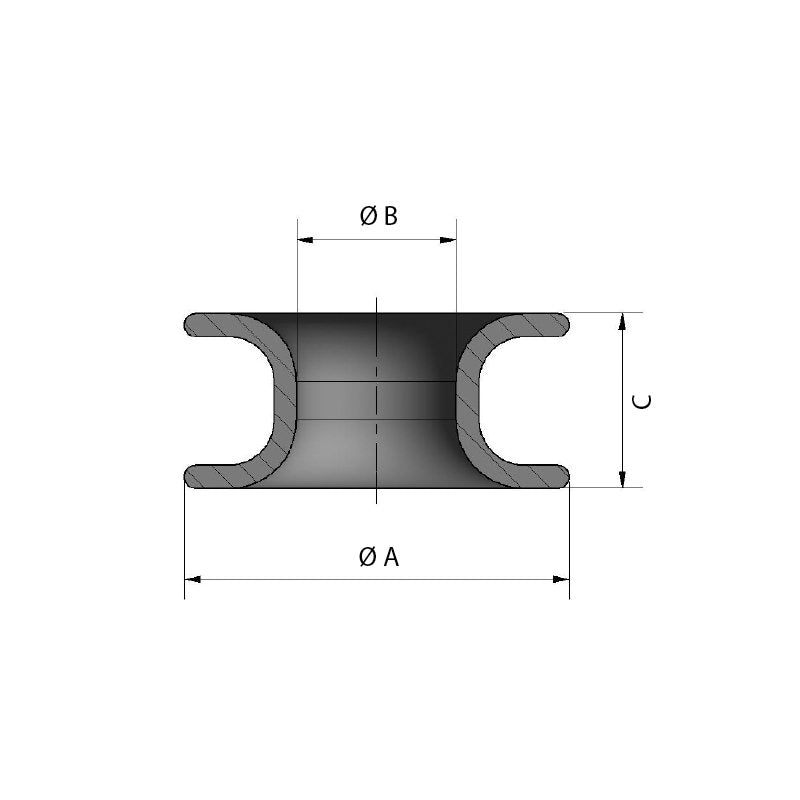

Please see second photo on product page for reference dimension locations.
