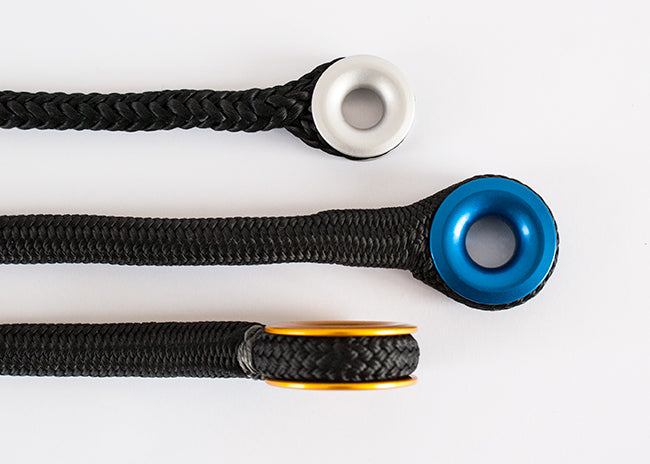

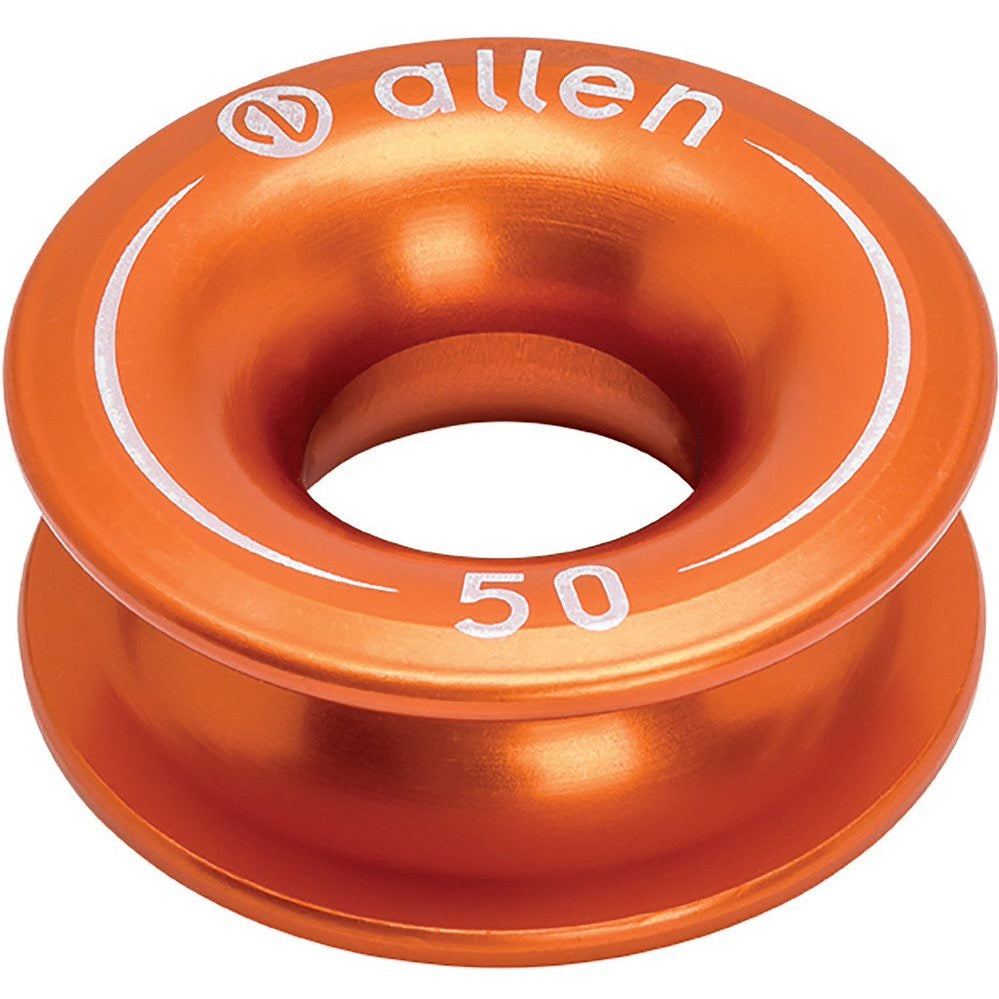

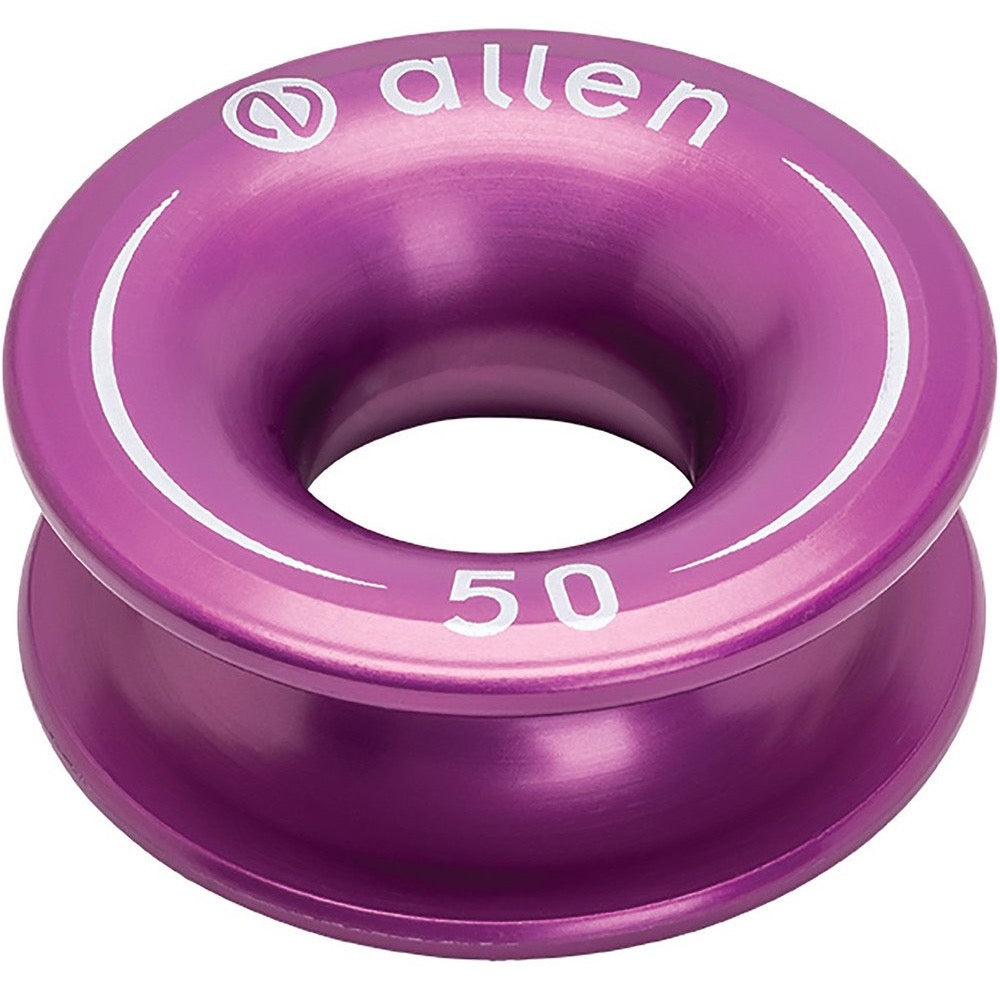

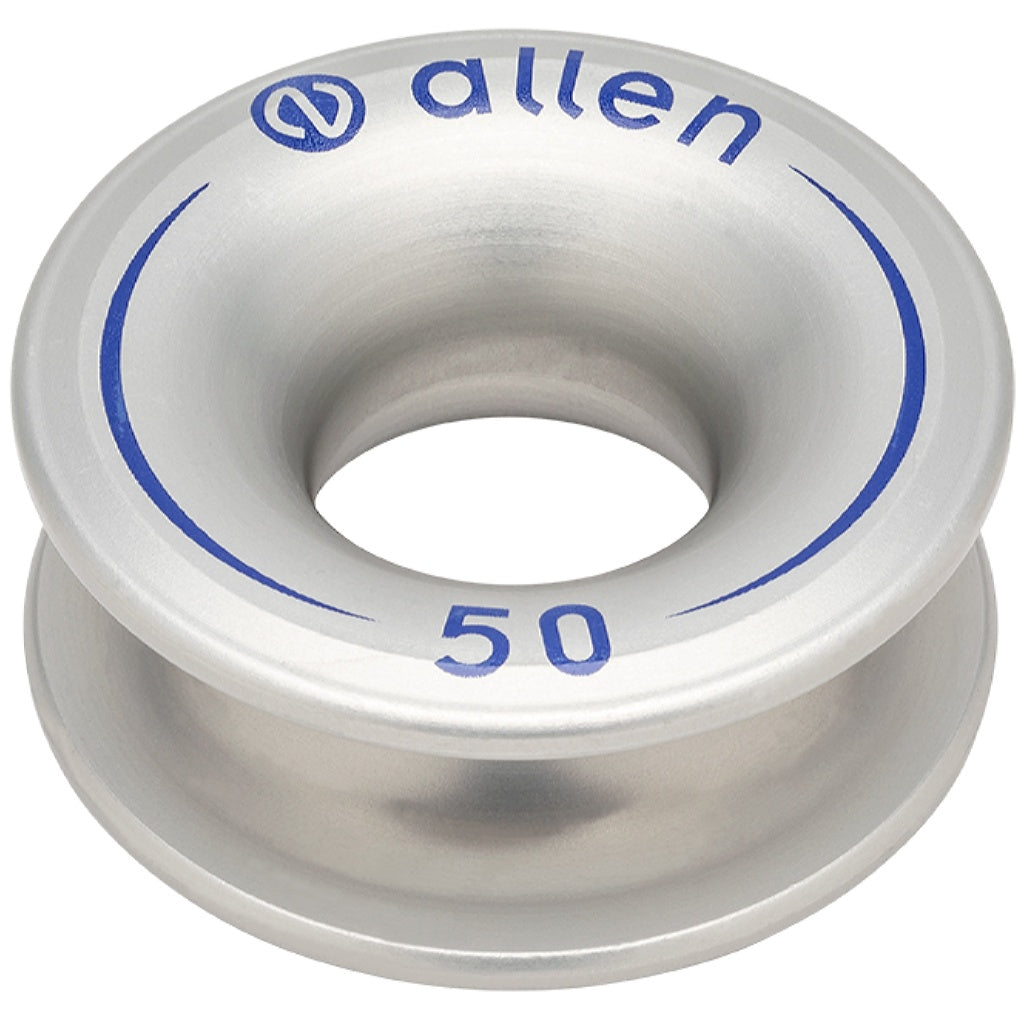

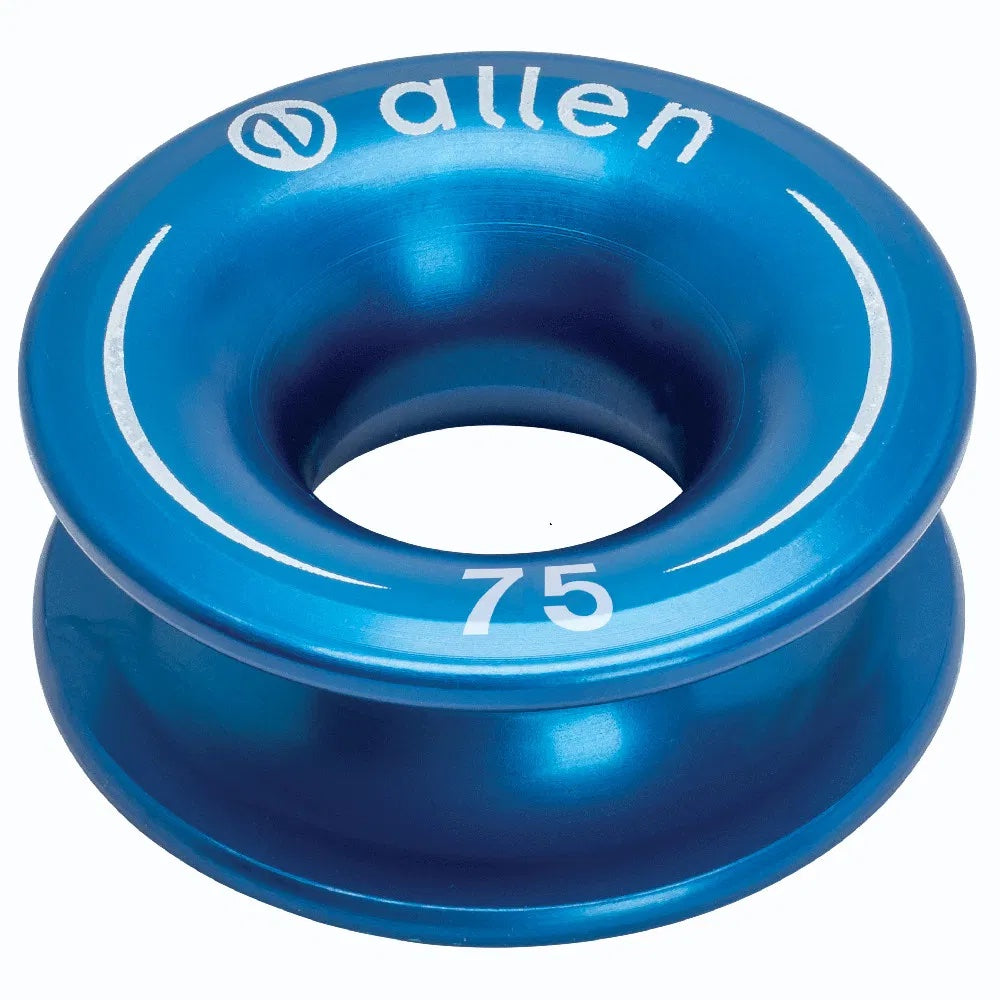

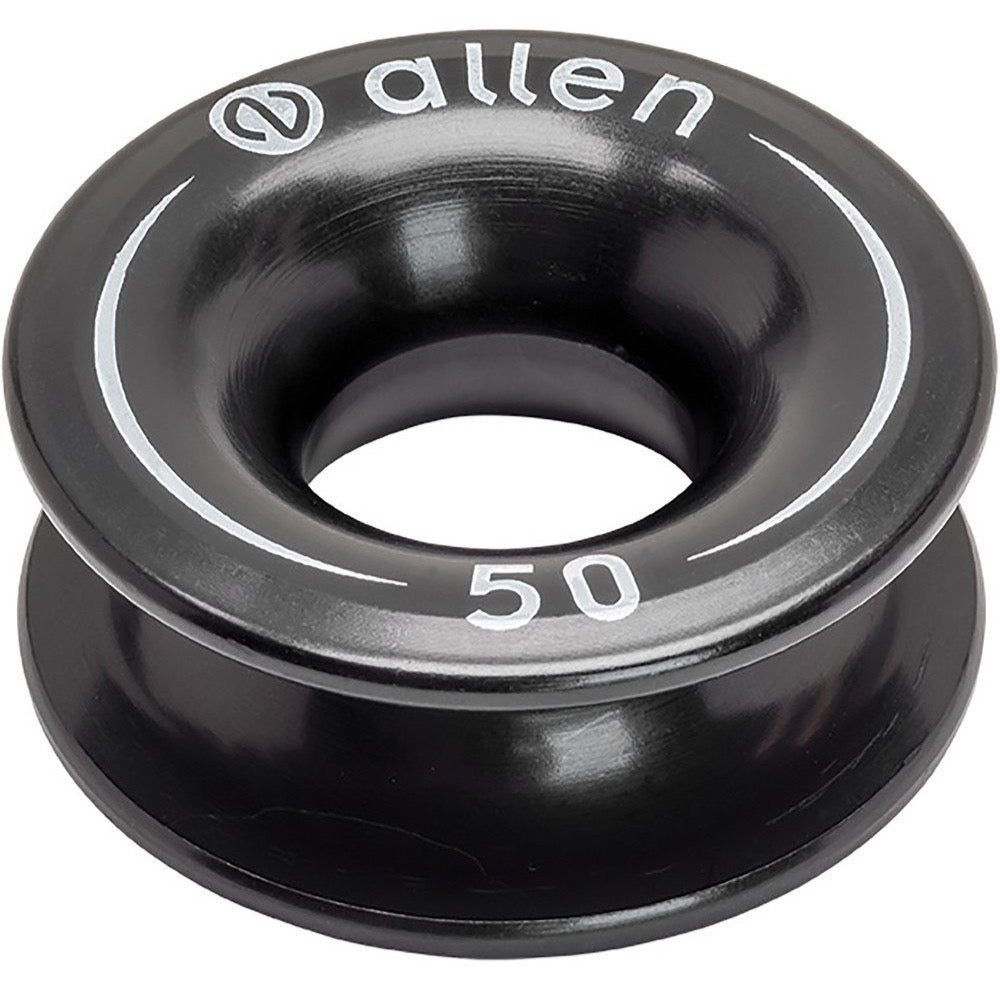

Thimbles are a great alternative to blocks when there is a need for high static load capabilities. Allen high load thimbles come coated in Teflon to help reduce friction. Machined from aluminium and anodised in a choice of 6 colours, black, blue, silver, purple, gold and orange.
Please note photos may show different sizes to the product you have selected.
Specifications

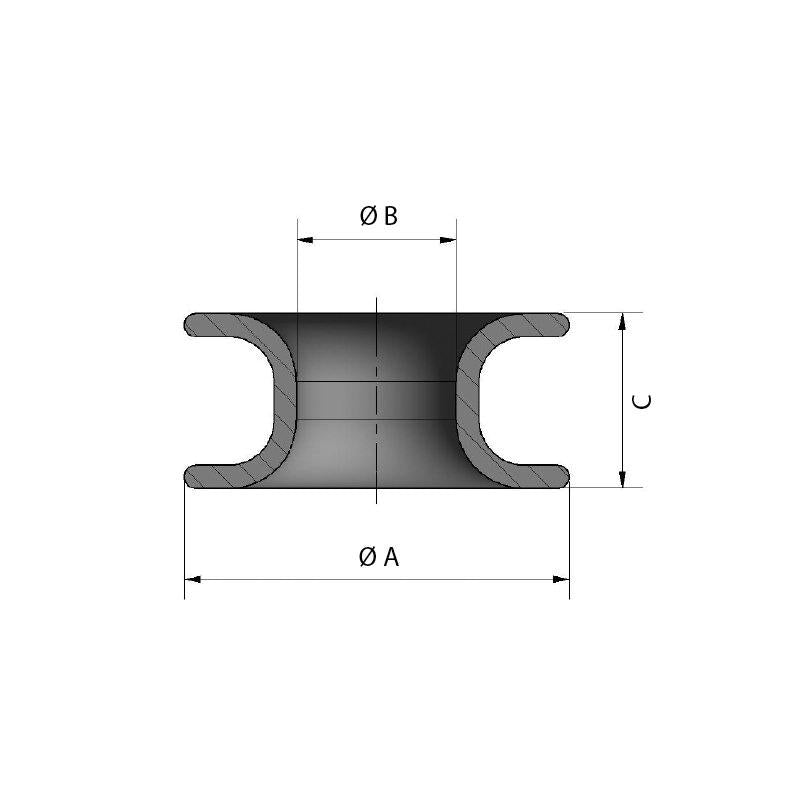

Please see photo on product page for reference dimension locations.
| 15mm | 20mm | 25mm | 30mm | 35mm | |
|---|---|---|---|---|---|
| ØA | 15 | 20 | 25 | 30 | 35 |
| ØB (mm) | 6 | 8 | 10 | 12 | 14 |
| C (mm) | 6 |
8 | 10 | 12 | 14 |
| Max. working load (kg) | 300 | 400 | 800 | 1000 | 1500 |
